Brake Pad
- Premium performance brake pads include semi-metallic, low-metallic，ceramic formula.
- No noise, 100% asbestos free brake pad.
- Superior heat fade resistance, up to 650℃
- Friendly to brake disc rotors.
- Outstanding braking performance for cars cars & trucks.
- Substantial reduction in dust
- Long life time，30000-50000 KMs
- Technical Data
- Drawings
- Videos
- More Details
- Contact us
Reference No.of Brake Pad
| FMSI No. | TRW No. | FERODO No. | WVA No. | OE No. |
| D1293-8331 | GDB3429 GDB7713 |
FDB1991 | 24350 | 04465-06080 04465-06070 04465-33440 04465-33445 04465-33450 04465-06100 04465-07010 04465-33470 |
Car Application of Brake Pad
| LEXUS | ES300h | 2013-2014 |
| LEXUS | ES350 | 2007 |
| TOYOTA | Avalon | 2008-2014 |
| TOYOTA | Camry | 2007 |
| TOYOTA | Camry Hybrid | 2007 |
Technical Data of Brake Pad
| Front or rear brake pads | Front |
| Brake System | AKB |
| Width | 157.5 mm |
| Height | 56.9 mm |
| Thickness | 17.6 mm |
Ceramic Brake Pad
This car brake pads formula is ceramic with RSR shim.
Ceramic brake pads are composed primarily of ceramic fibers and other filler materials.
They are cleaner and produce much lower noise levels.
Also, they provide for excellent braking and don’t cause a lot of wear on the brake rotors.
Ceramic brake pads are very quiet, creating little-to-no extra sound when the brakes are applied.
Compared to organic brake pads, ceramic brake pads tend to produce less dust and other particles over time as they wear down.
Compared to organic brake pads, ceramic brake pads can be more reliable in a wider range of temperatures and driving conditions.
brake friction materials have evolved significantly over the years.
They’ve gone from asbestos to organic to semi-metallic formulations.
Each of these materials has proven to have advantages and disadvantages regarding environmental friendliness, wear, noise, and stopping capability.
Asbestos pads caused health issues and organic compounds can’t always meet a wide range of braking requirements.
Unfortunately, the steel strands used in semi-metallic pads to provide strength and conduct heat away from rotors also generate noise and are abrasive enough to increase rotor wear.
Since they were first used on a few original equipment applications in 1985, friction materials that contain ceramic formulations have become recognized for their desirable blend of traits.
These pads use ceramic compounds and copper fibers in place of the semi-metallic pad’s steel fibers.
This allows the ceramic pads to handle high brake temperatures with less heat fade, provide faster recovery after the stop, and generate less dust and wear on both the pads and rotors.
And from a comfort standpoint, ceramic compounds provide much quieter braking because the ceramic compound helps dampen noise by generating a frequency beyond the human hearing range.
“The ingredients in ceramic compounds produce light-colored dust that is much less noticeable and less likely to stick to the wheels. Consequently, wheels and tires maintain a cleaner appearance longer.”

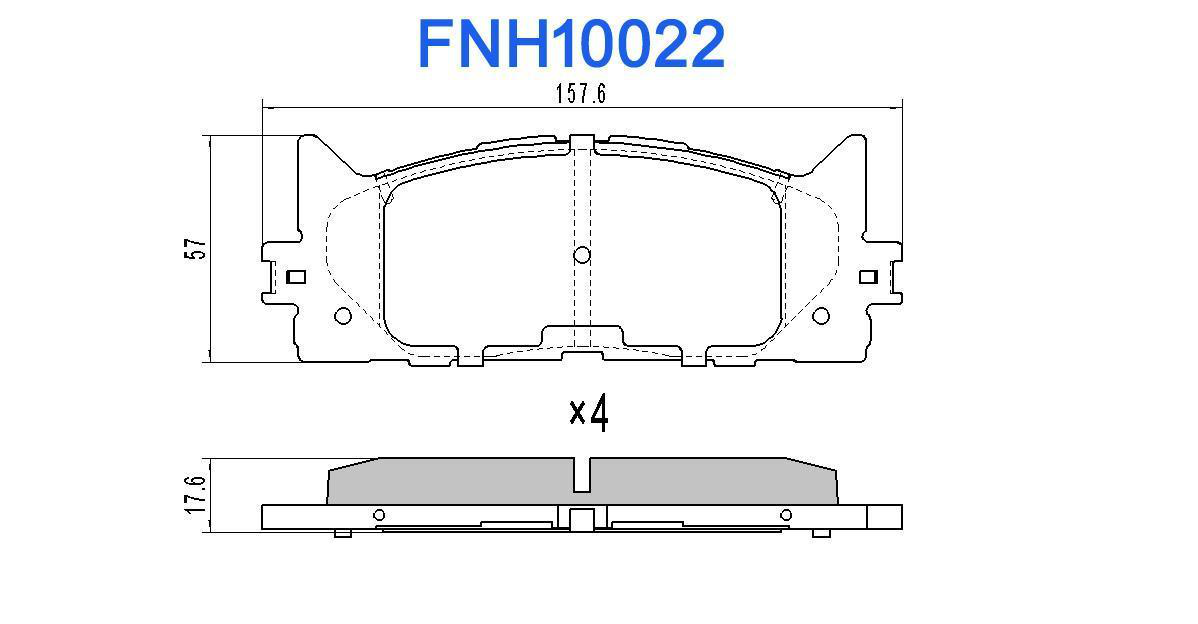

Drawing of Frontech Brake pads:
Car Brake Pads – Frontech Brake in China.
MOQ: 50 sets each item, 2000 sets for one order.
Package: Plastic bag + Fonntech Color box
4 pcs=1 set
10 sets=1 Carton
50 cartons= 1 Pallet
20 pallets= 1*20’GP
Related products：
brake shoes
brake discs
truck brake pads,
brake sensor
pad kits
Brake drums
Samples Policy: One or two sets with no charge
Brake Pad Replacement Service-Frontech China
Listen To What Our Clients Say About Our Brake Pad
Keep Updated On Latest Brake Pad Newsletter
Brake pad replacement service is one of the essential services that you must do on your car.
As the name suggests, the service entails replacing the brake pads of your car.
You just can’t avoid or skip this service.
As simple as it sounds, it plays a big role in keeping you safe on the road.
Image of brake disc source PIXABAY
Introduction
The highlight of the brake pad replacement service is replacing the old brake pads with the new ones.
The old brake pads are usually out of shape and probably not functioning properly.
Even if the old brake pads may be performing as expected, they could be putting you at a big risk of being involved in accidents.
Through brake pad replacement service, you will be in a position to rectify everything.
In this article, am going to guide you on everything you need to know about brake pad replacement service.
When Should I Go for Brake Pad Replacement Service?
If you are a first-time car owner, you may be wondering about an appropriate date to do brake pad replacement.
Even those who have owned cars for years are not always sure about the appropriate period for this service.
To be frank, there is no fixed period in which you should be taking your car for brake pad replacement service.
Instead, you can just see the physical signs and know that the time is ripe for you to go for the service.
Here are signs that tell you it is time to replace your brake pads:
1.Brake pad wear indicator on the dashboard
Thanks to technology, you can now get a clear message when your brake pads are worn out.
The wear indicator will display on the dashboard when the brake pad’s thickness is not more than 2mm.
But my vehicle does not have the wear indicator. What other signs can I use?
There are many other visible signs that you can use to know your brake pads are worn out beyond a certain level.
-Sharp squeaking sound when braking
A sharp squealing and squealing sound will be produced when the brake lining of the brake pad is worn away beyond a certain level.
The sound is similar to that of metals rubbing against each other.
At this point, you have no other choice but to go for the replacement service.
-The vibration of brake pedals
Unusual vibrations from your brake pedals could be a sign that it is time to replace your brake pads.
In most cases, you will be able to feel the vibrations even when you are not applying the brakes.
-The vehicle pulls to the sides
How does your car behave when you are trying to slow it down or stopping it?
If it pulls either to the left or to the right, this could be a sign of a worn-out brake pads.
The pulling is always as a result of the imbalanced brake calipers as the warped parts of the brake pads might have affected their surface.
In addition to these signs, you can tell that it is time to go for a brake pad just by the millage of your current brake pads.
Most brake pads are manufactured to cover between 20,000 and 50,000 miles.
If yours is beyond this range, you have no choice but to seek brake pad replacement service.
What is the Cost of Brake Pad Replacement Service?
Image of brake pads
All the signs on your vehicle are leading to one conclusion-it is time to go for brake pad replacement service.
The next thing that you need to think about is money.
What is the cost of brake pad replacement service?
When it comes to the issue of cost, the first thing that should come to your mind is the car brake pad price.
This is just one of the things that will contribute towards the price to change the brake pads.
The brake pad price ranges between $100 to $300 per axle.
The price depends on the type of brake pads that you are buying for the car.
Other than the price, there are other issues that will add up to the overall cost of the brake pad replacement service.
There could be a few pieces of hardware in the brake system that need to be replaced.
They include brake calipers and rotors, and brake calipers.
If they are also in a bad shape, you will have to replace them and this will add to the overall brake service cost.
What about the cost of labor?
The services rendered can add to the brake shoe replacement cost.
You may have to calculate both the rear brake pad replacement cost and front brake pad replacement cost.
From there, you can find the total brake service cost.
If you can do the brake pad replacement on your own, you will be able to save quite a good amount of money.
You will only have to deal with the front brake pads price.
Is it Difficult to Change Brake Pads?
Brake pad replacement service is not hard or complex as it sounds.
It is a task that you can do in your garage and within a short time.
All you need is to assemble a few sets of tools and embark on the job.
When replacing the brake pads, you need to take extra precautions not to damage any components of the car’s brake system.
For instance, ensure that the caliper does not hang or dangle from the brake lining.
However, if you are not 100% sure of what the brake pad replacement service entails, don’t feel ashamed to consult professional mechanics.
Even though you will spend more, you will save yourself from the stress of doing the job.
You will also prevent doing other damages that are related to brake pad replacement.
What Happens During a Brake Pad Replacement Service?
Brake pad replacement service source PIXABAY
Once you take your car for a brake pad replacement service, here are the activities that take place:
-The car is hoisted and the wheels are removed to make the brake pads accessible
-The disc rotors are checked to ascertain their condition
-Remove the brake pads then check their thickness
-Replace the brake pads
-Check the level of the brake fluid
-Test-drive the vehicle.
As you can see, the procedure is as simple as that.
Nothing complex that you can’t do.
To make things easier, here is a step by step guide of how to replace brake pads.
Conclusion
In conclusion, I hope that you have learned something valuable about brake pad replacement service.
It is an essential service that will keep you safe on the roads.
When choosing the new brake pads, ensure that you buy from reputable brake pad manufacturer in China.
